Precision spray application technology from Nelspray, New Zealand — the world's only integrated developer of spray systems and release agents for the panel board industry.
Owned and operated from New Zealand, Nelspray is the only company in the world that researches, develops, and manufactures both spray systems and release agents specifically for the panel board industry.
Clarvigo brings this complete, integrated solution to manufacturers across India — with demonstration, installation, and after-sales support.

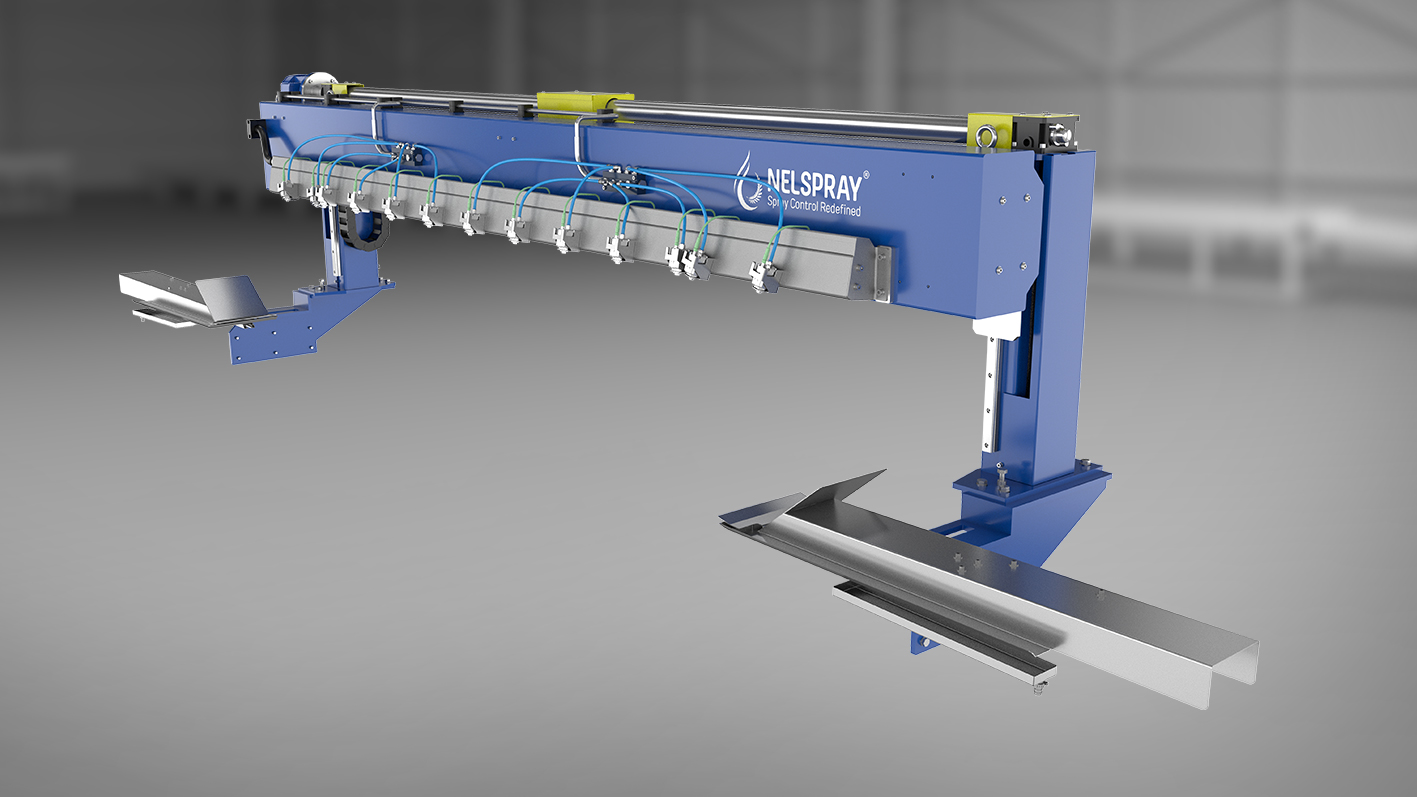

"Superior control, every spray." Designed for precise, repeatable application in front of the press.

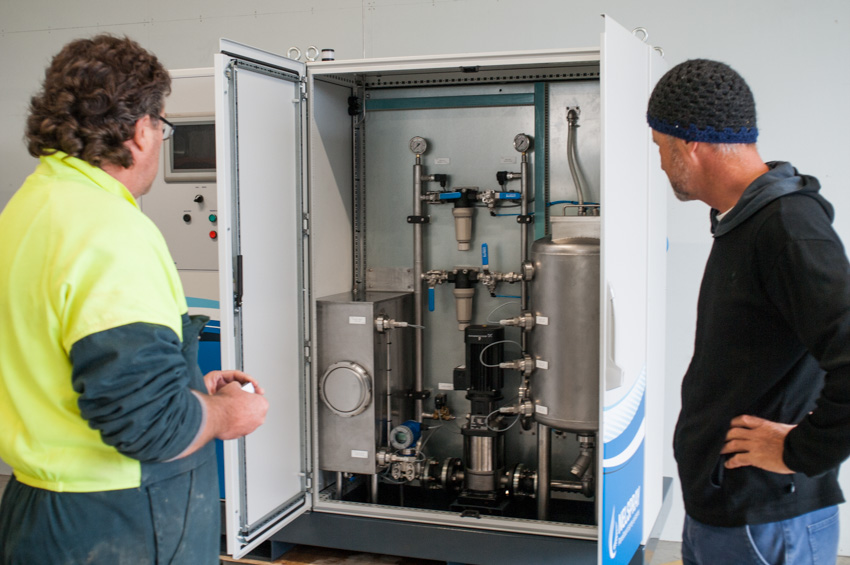

Reduced pre-cure for lower thickness targets. Fully housed pump station to cut dust and cleaning downtime. Improved surface soundness. Rapid return on investment.
Every Nelspray system is custom-engineered for the specific panel board line it serves — then commissioned and calibrated by Clarvigo's local team.

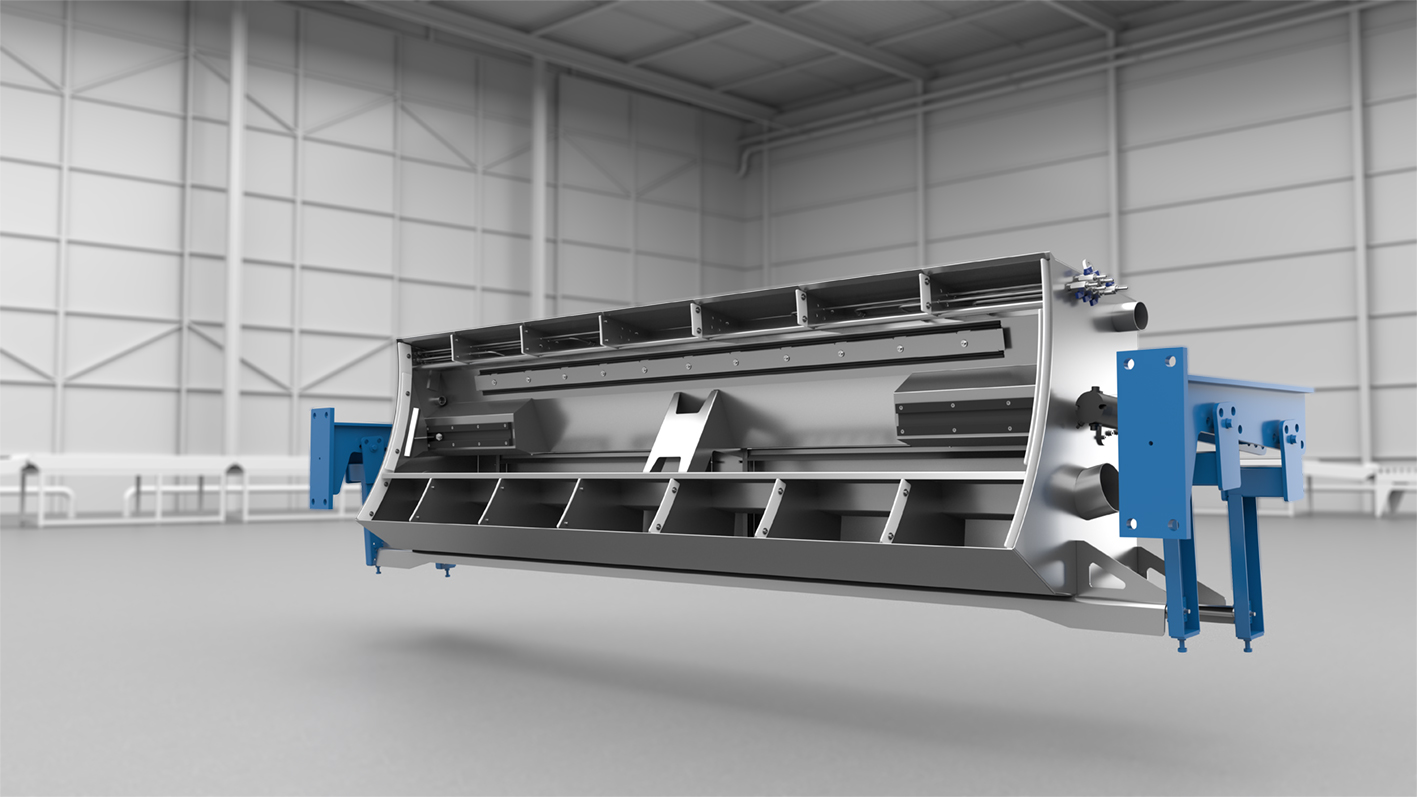

Talk to an Engineer"Flawless spraying, every time." Nelspray's second-generation spray booth — engineered for minimal waste and easy operation.

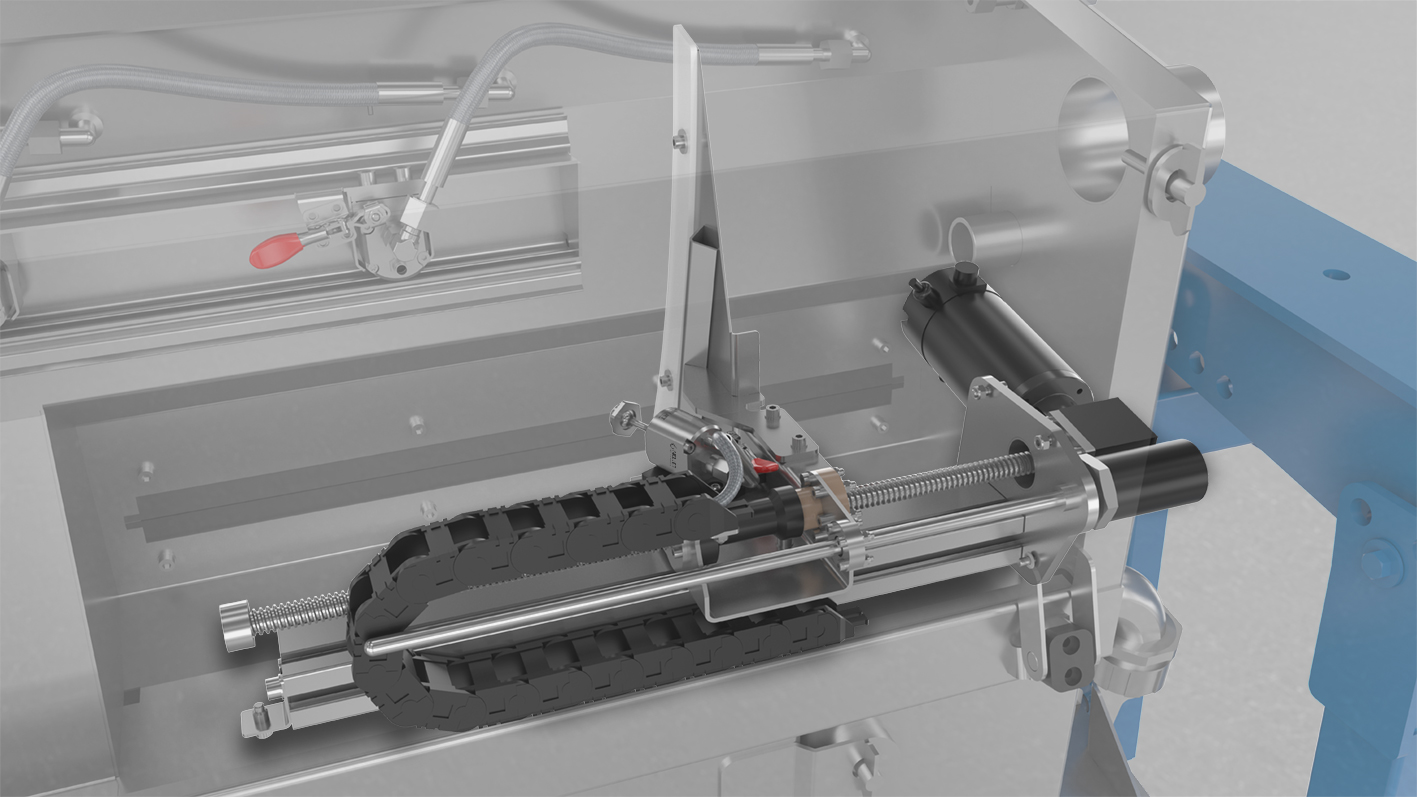

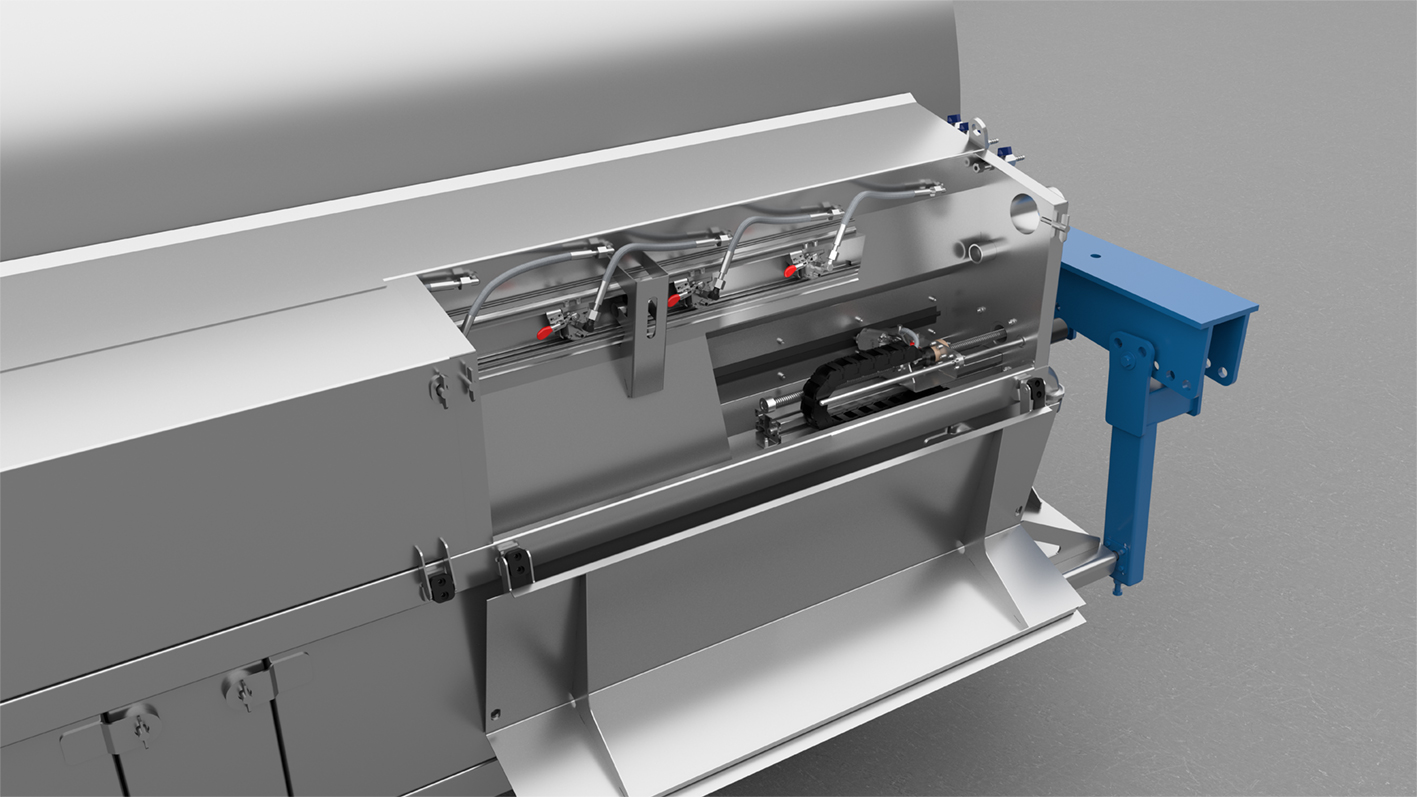

Follows production width automatically with fine offset adjustment — no manual intervention required.

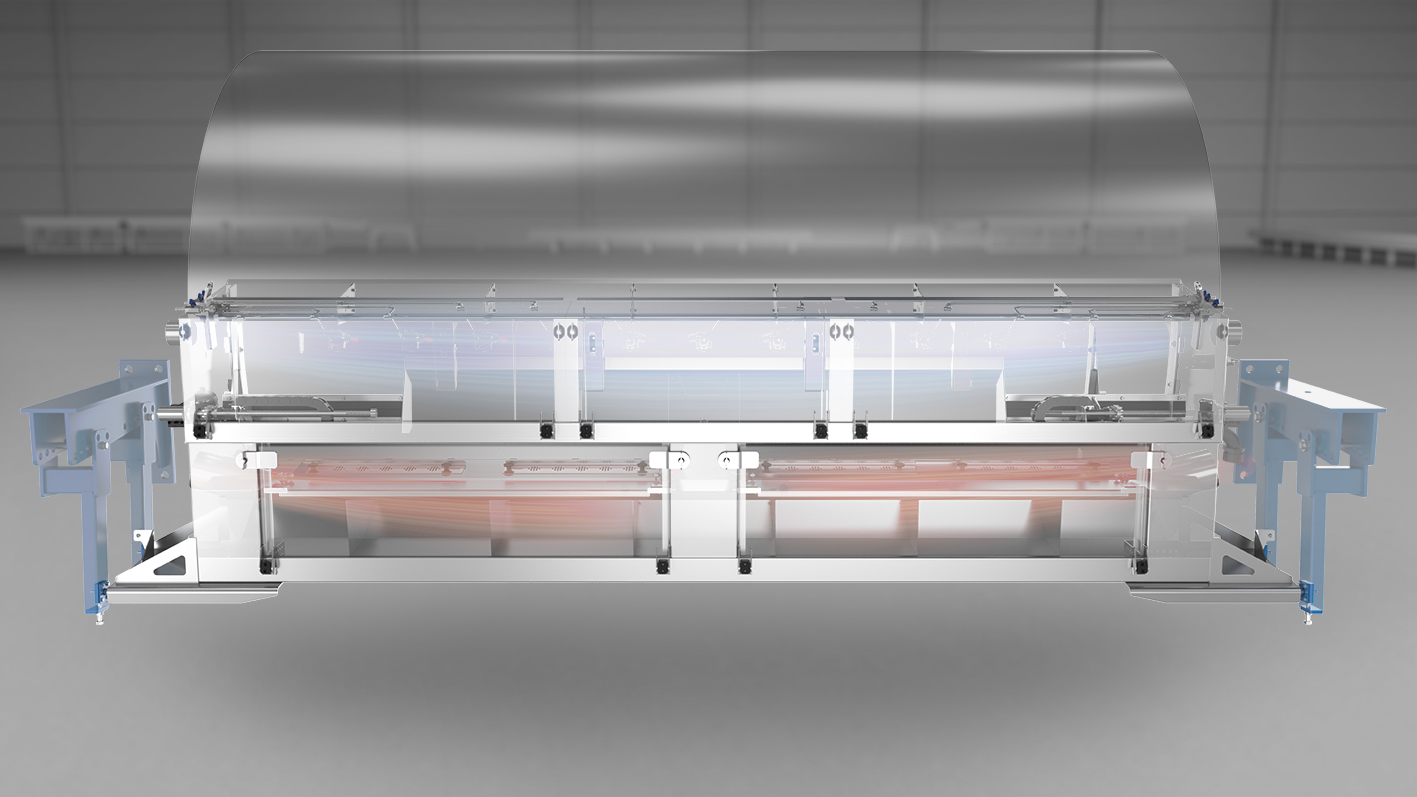

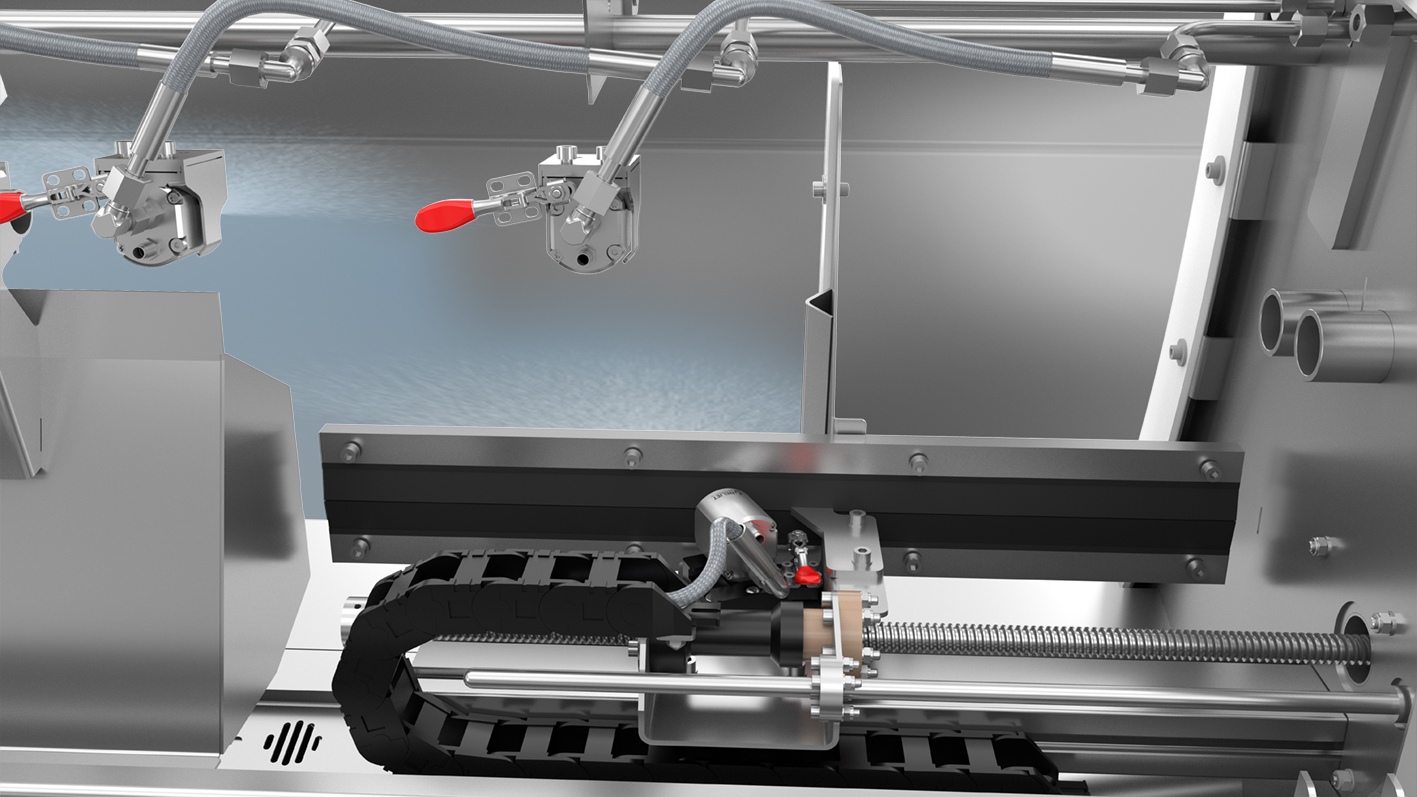

Minimizes turbulence around the nozzle for superior spray quality. Fully enclosed chamber cools NelJets® and contains steam.
Up to 13-flow-meter configurations for highly accurate spray monitoring. Netzsch progressive cavity pump via IFM flow meters. Dosing range 5–70%.

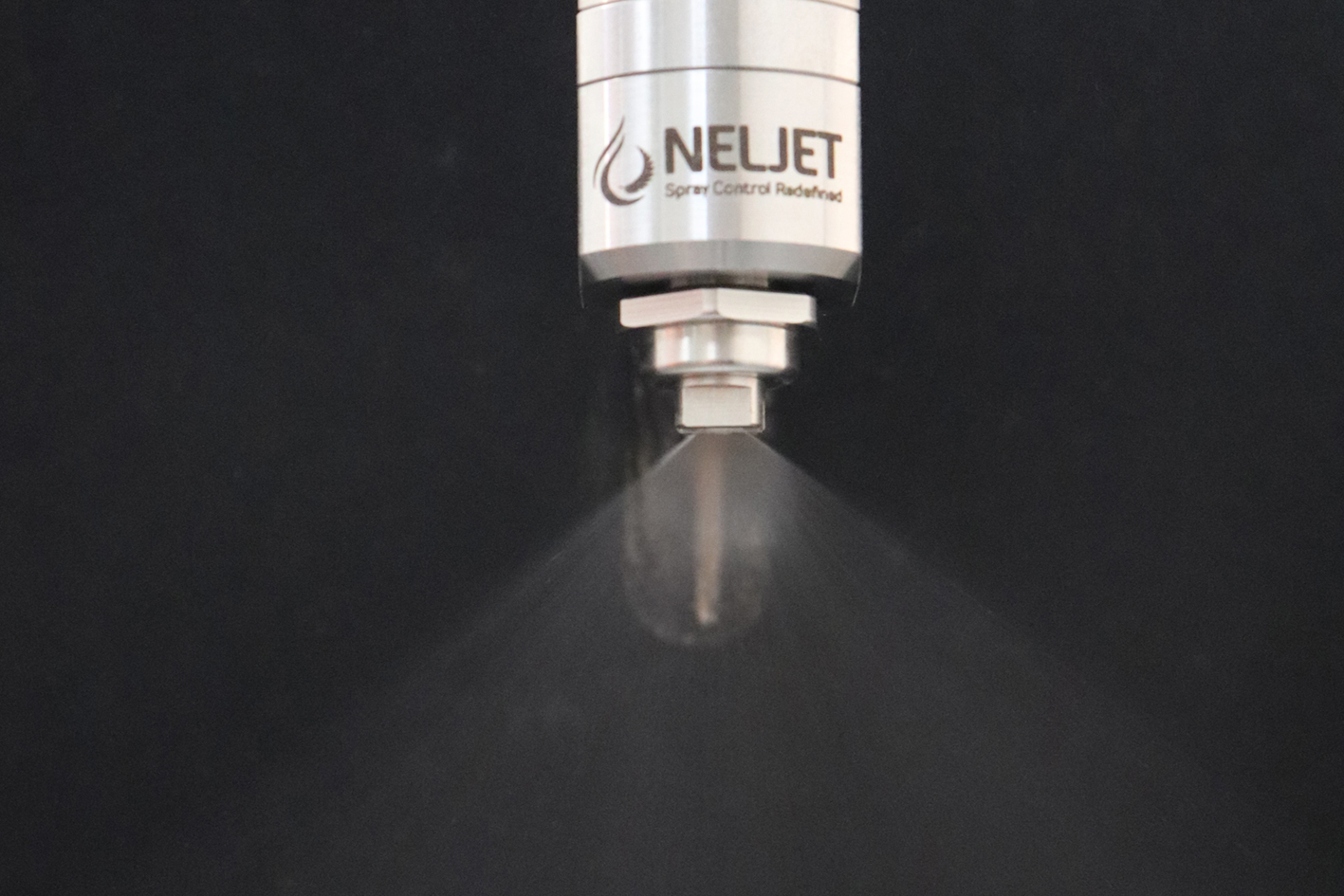

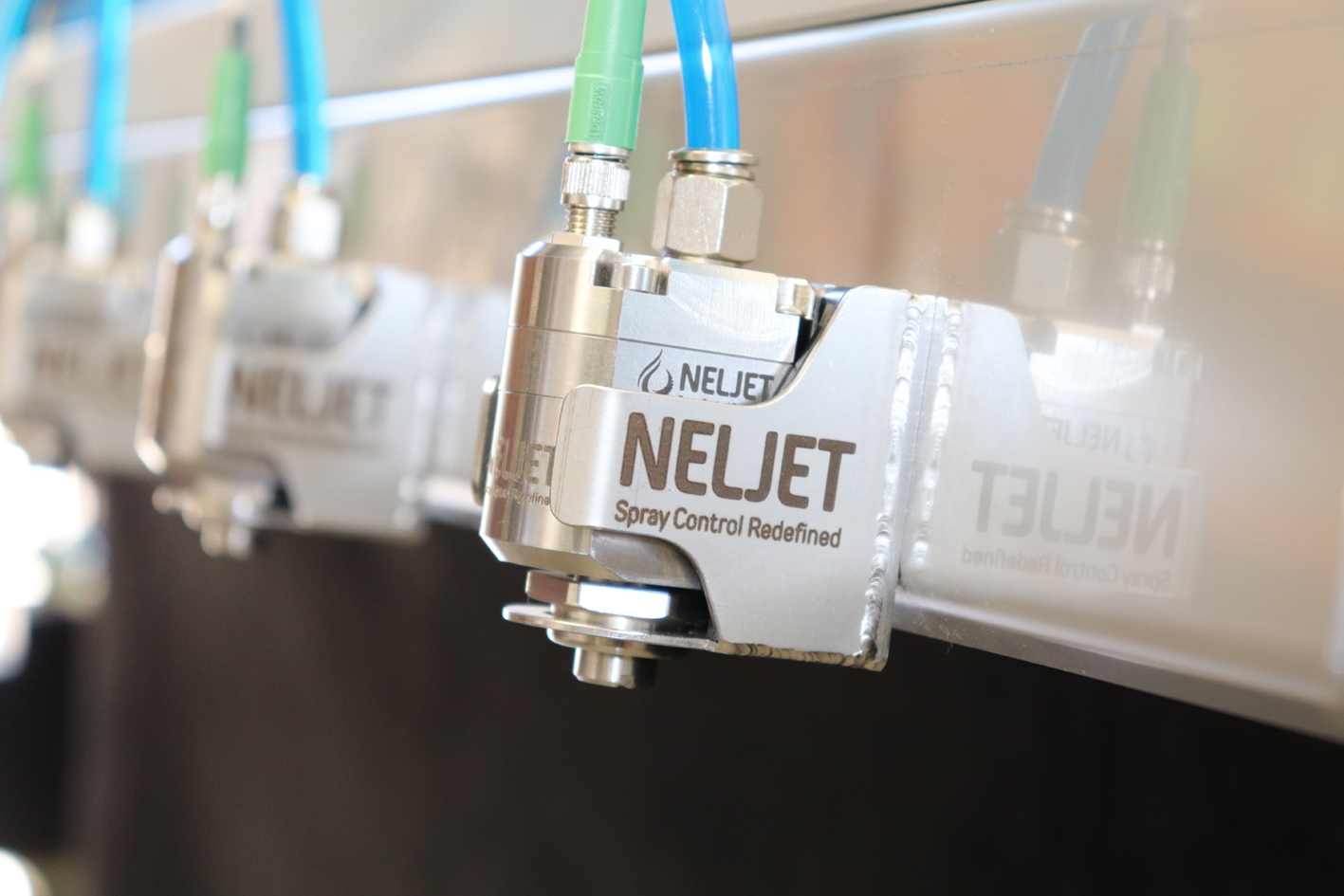

"The next generation of high-frequency spray application."
Built to redefine spray control for OSB, MDF, and particleboard lines. NelJet® is the engine behind every Nelspray system.
| Parameter | Value |
|---|---|
| Voltage | 24V DC, PWM, 0.35A |
| Response time | 3 ms |
| Pre-set tip angle | 6.5° |
| Flow range | 0–1300 ml/min @ 3 bar |
| Liquid supply port | 1/8" BSP |
| Electrical connection | MB-3 pin |
"The elimination of striping distance."
Traditional PWM spray systems fire all guns together — which can cause striping. APT uses separately timed triggers to fire odd and even guns out of sequence.
The result: a uniform, consistent spray film. Ideal for modern, high-speed production lines.
Proven chemistry that improves panel quality, press speed, and cost efficiency — formulated specifically for panel board applications.
Designed primarily for mat spraying in front of the press. Proven chemistry with application rates of no more than 5% without compromising quality.
Concentrated, neutral-based release agent purpose-built for lines running 100% MDI resin. Successfully used on OSB and MDF lines.

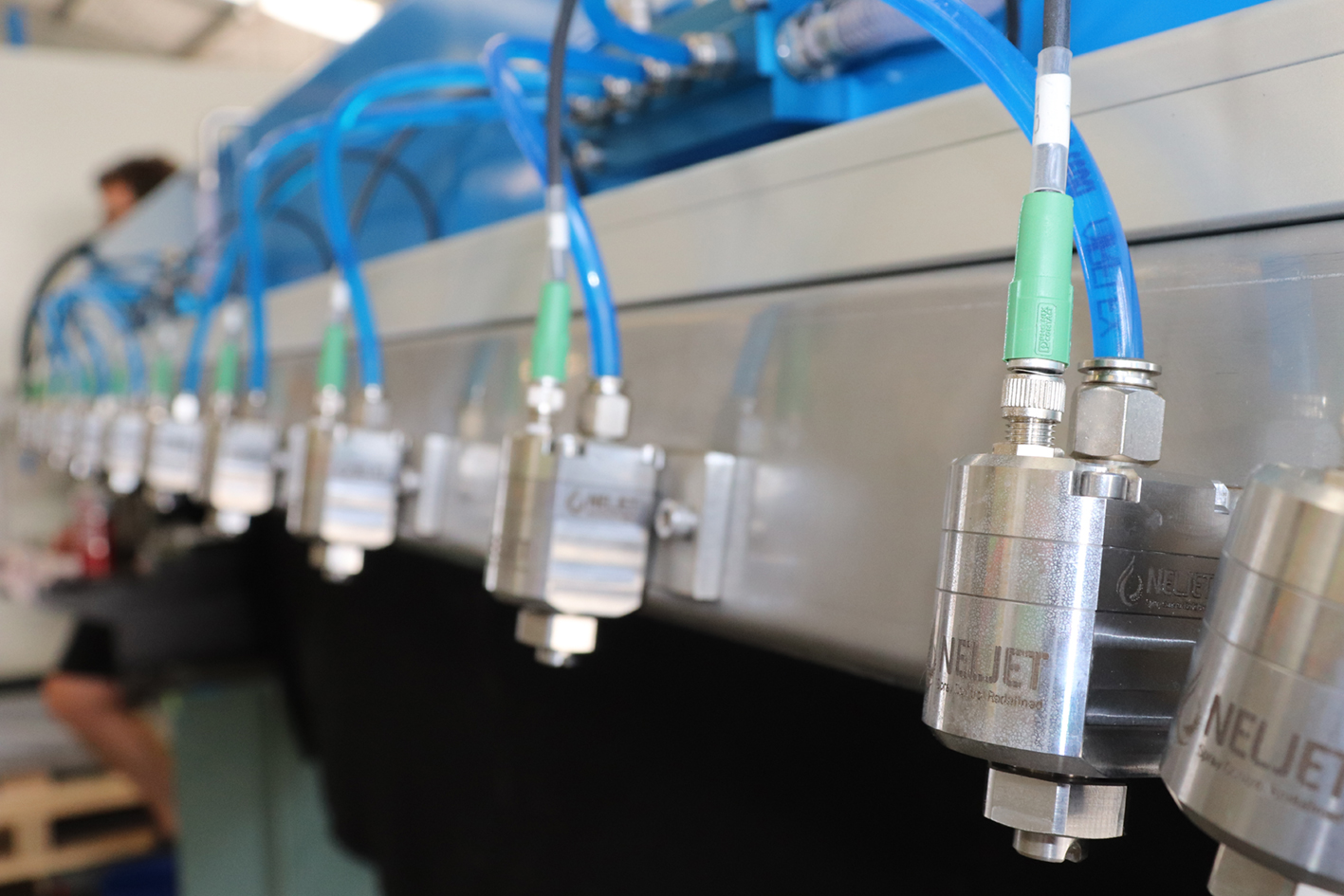

Precision-engineered spray systems designed and manufactured in Nelson, New Zealand.
Watch Nelspray spray equipment running in live panel board production conditions.
Nelspray spray system — live production operation
